Important Note: The unit is supplied without a power plug. For operation at maximum currents, the unit must be equipped with a 32A 230V single-phase power plug (not included).

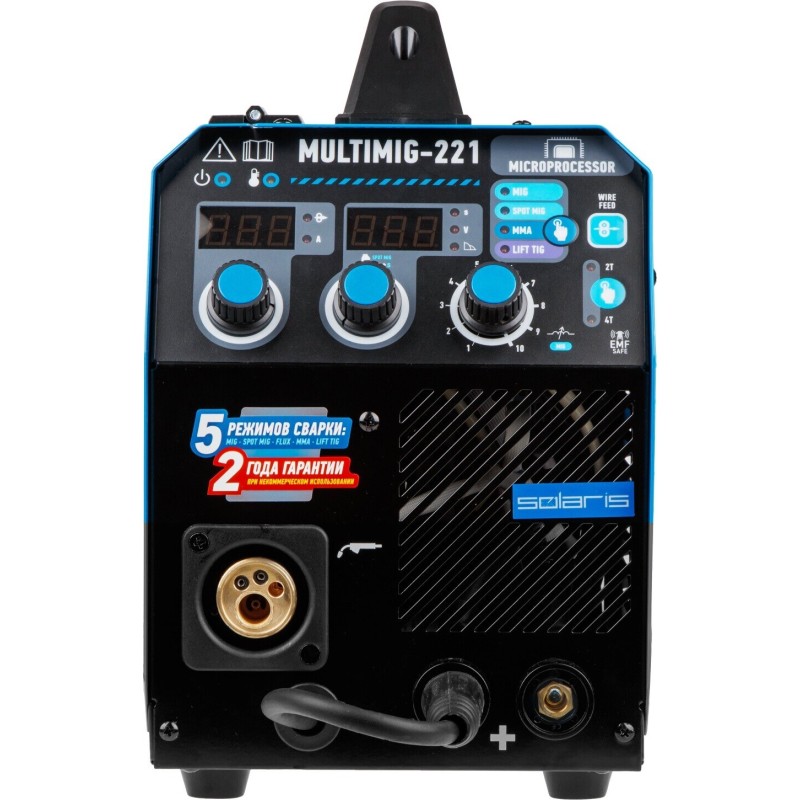

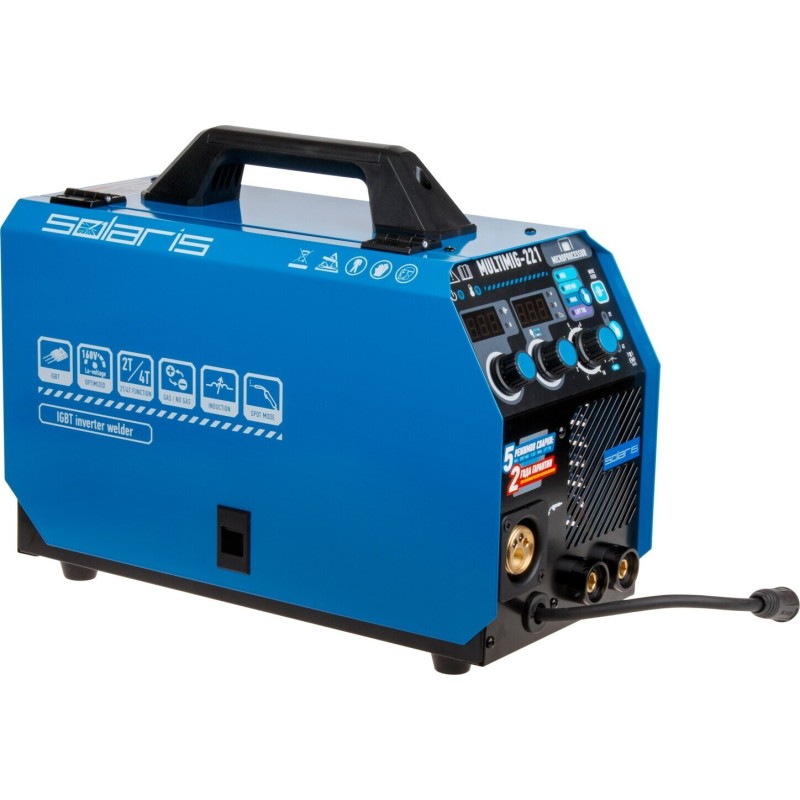

The SOLARIS MULTIMIG-221 Welding Inverter operates on 4 IGBT transistors, making it a reliable solution. 5-in-1: MIG / SPOT MIG / FLUX / MMA / TIG lift DC. Microprocessor control. Accepts spools up to 5 kg / 200 mm. Wire feed/inching button (without voltage) - safe for the operator. Polarity change capability for gasless flux-cored (FLUX) wire welding. Stable operation in low-voltage networks (from 160V). 2T/4T trigger modes (for MIG). SPOT welding mode (spot welding with duration from 0.1 to 10 seconds). Adjustable Arc Force (for MMA). EMI filter to protect other devices from interference.

Nominal input current (MIG / MMA / TIG): 11.3 A / 11.5 A / 7.6 A.
Max permissible input current (MIG / MMA / TIG): 25.2 A / 25.6 A / 17.1 A.
Wire diameter: 0.6-1.0 mm.
Electrode diameter (MMA): 1.6-4.0 mm.
TIG electrode diameter: 0.5 - 3.2 mm.
Gas hose connection diameter: 6.3 mm.

Key Features:

• 5-in-1 Multi-Process Versatility: MIG/MAG, Flux-Cored (FCAW), MMA (Stick), Lift TIG, and MIG Spot welding.

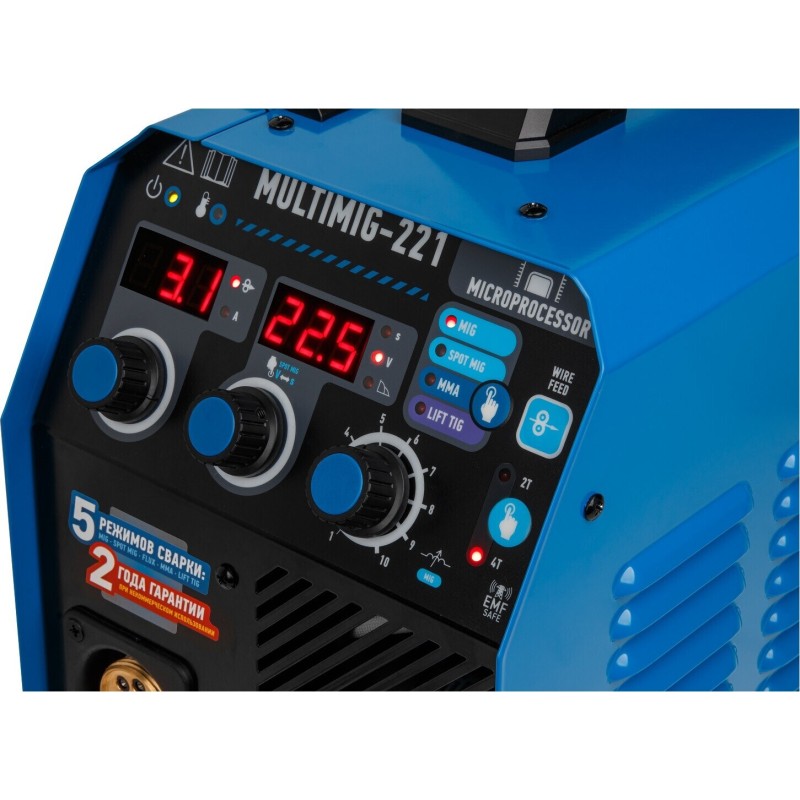

• Professional Control & Features: Microprocessor control, digital display, 2T/4T trigger, adjustable Arc Force, and a safe wire inching button.

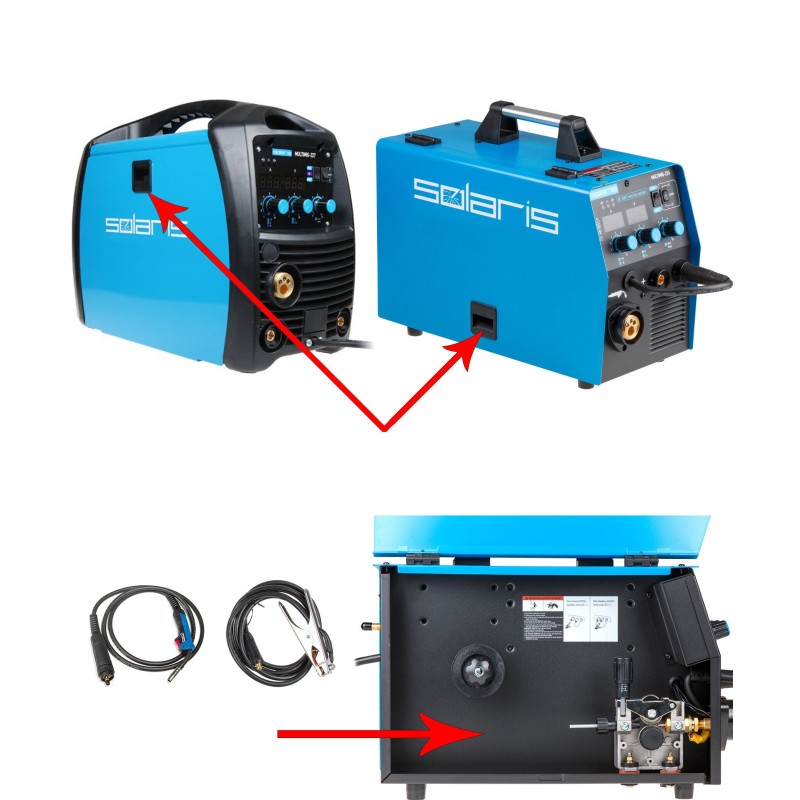

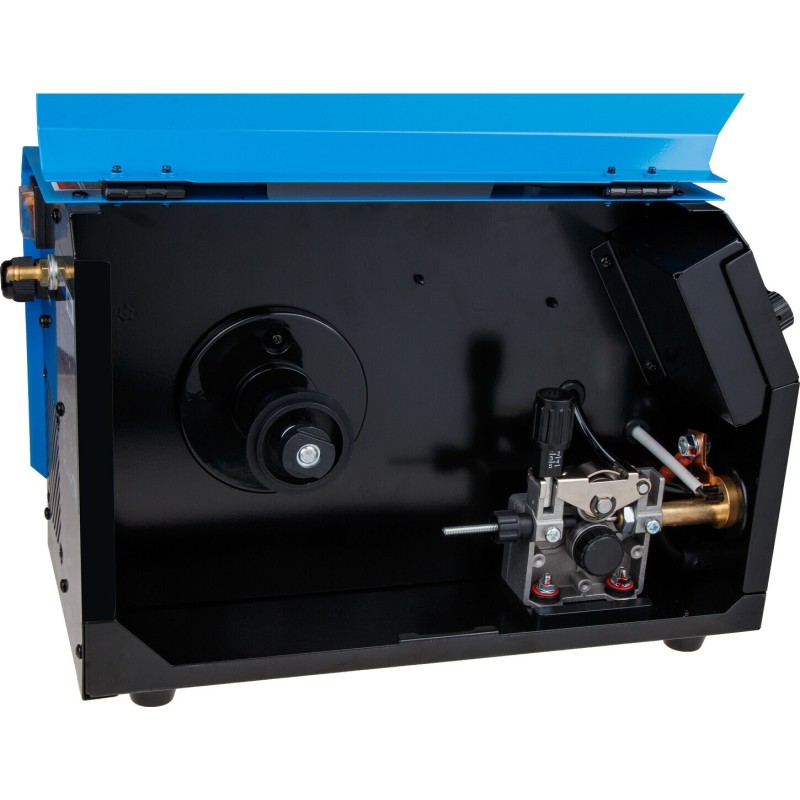

• Large Spool Capacity: Integrated feeder accepts large, economical 5 kg (200mm) spools of wire.

• Stable & Reliable: IGBT technology and wide input voltage range (160-240V) ensure consistent performance.

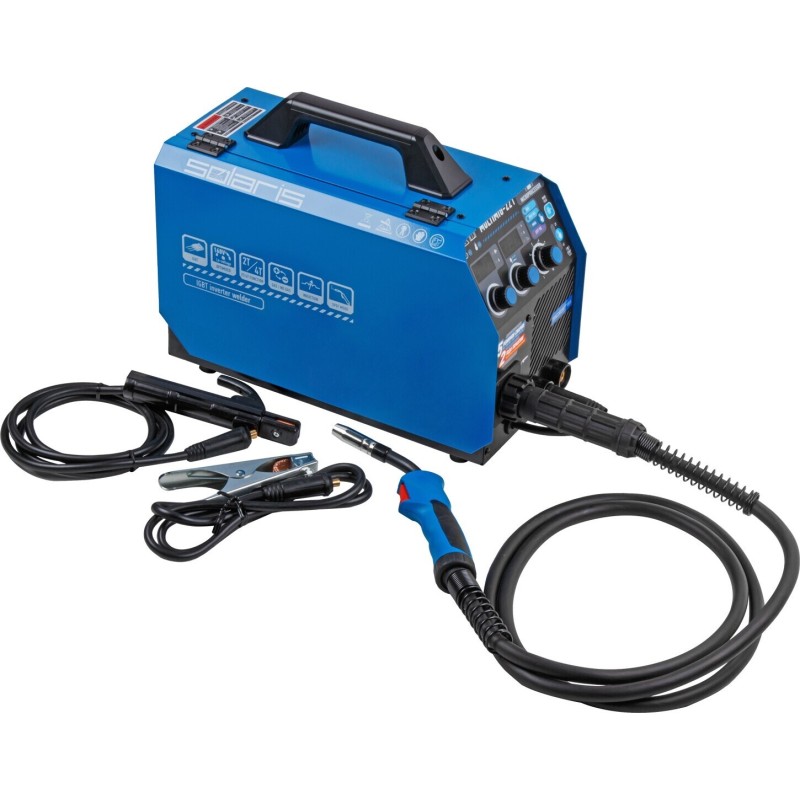

• Complete Kit for MIG/MMA: Includes 3m MIG torch, 2m electrode holder, and 1.5m ground clamp.

• Ideal for Home & Professional Workshops: Offers professional features in a robust, capable package for fabrication and repair.
